Single Point Suspension Axle 70 Tons Dump Semi Trailer

Product Categories
JINAN TRUCKMAN AUTOMOBILE CO.,LTD
Contact Now

Single Point Suspension Axle 70 Tons Dump Semi Trailer

  • 1
  • 2
  • 3

Brand Name : TRUCKMAN AUTO

Model Number : TKM370DSD

Certification : SGS, BV, CIQ

Place of Origin : CHINA

MOQ : 1 Unit

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1500 Unit / Per Month

Delivery Time : 20 working days

Packaging Details : Nude

Axle : 3x13 Tons

Tyre : 12.00R24, 12 pcs

Support Leg : JOST, 28 tons

Material : High strength steel

Cargo Box : 10000x2300x1700mm, 40cbm

Suspension : single point and mechanical suspension

Contact Now

Single Point Suspension Axle 70 Tons Dump Semi Trailer For Mauritania

-1. 70 Tons Dump Semi Trailer Main Detail.

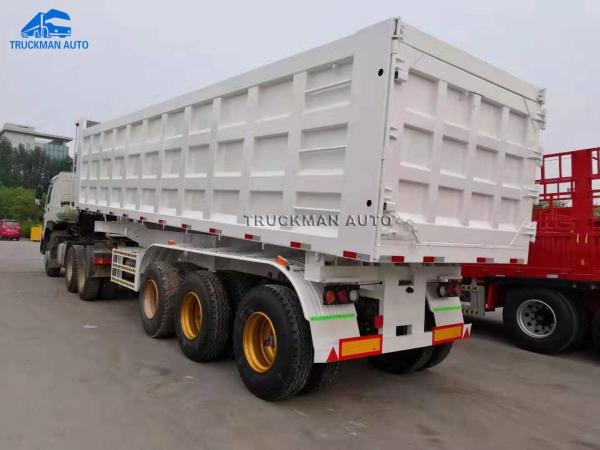

Single Point Suspension Axle 70 Tons Dump Semi Trailer

The 70 tons Dump semi trailer used for transport sand, gravel and iron ore in Mauritania.

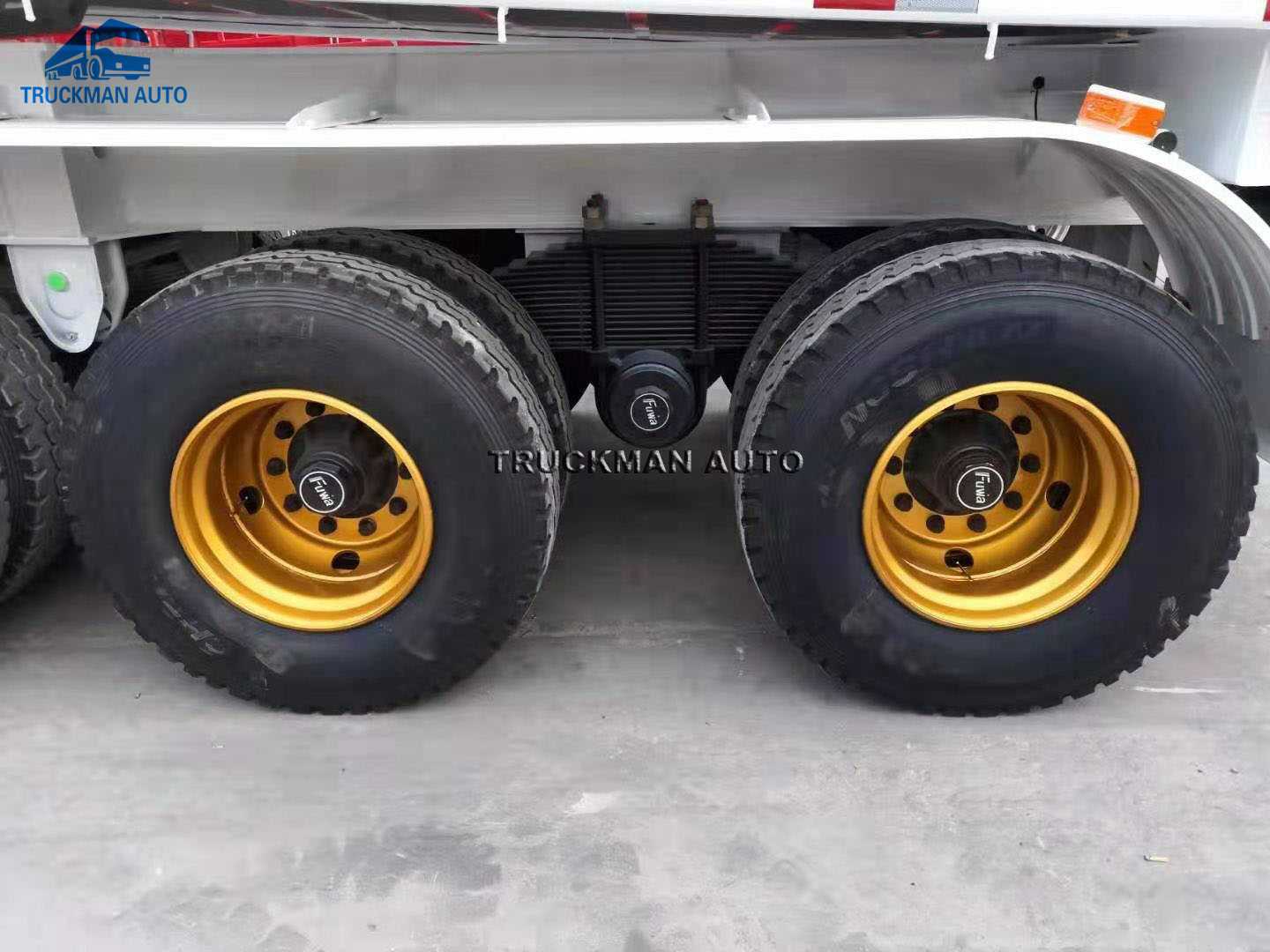

The axle is special for heavy loading transport, rear axle use the single point suspension axle and front axle use the normal axle.

-2. 70 Tons Dump Semi Trailer Main Specification.

Description Parameter value
Product Name 70 Tons Dump Semi Trailer
Loading Weight 70,000kg
Tare Weight 11,500kg
Axle 3 axle, 3x13 tons, with single point suspension axle
Suspension America type, 8mm thickness
Leaf Spring 90x16mmx10pcsx6sets
Rim 18mm thickness
Tire 12.00R24 or 13R22.5, 12 pcs, TRIANGLE brand
Brake System WABCO brand, ABS and 6 pcs brake chamber
Thickness Of Frame

Upper plate 16mm, middle 8mm,

lower plate 18mm, “I” type main beam
Material Q345, high strength steel
Application Transport the iron ore
Cargo Box 10000x2300x1700mm, 40cbm, HYVA brand lifting system
Dimension 11000x2500x3650mm

The specification is only for reference, we could design the Dump semi trailer according to your request.

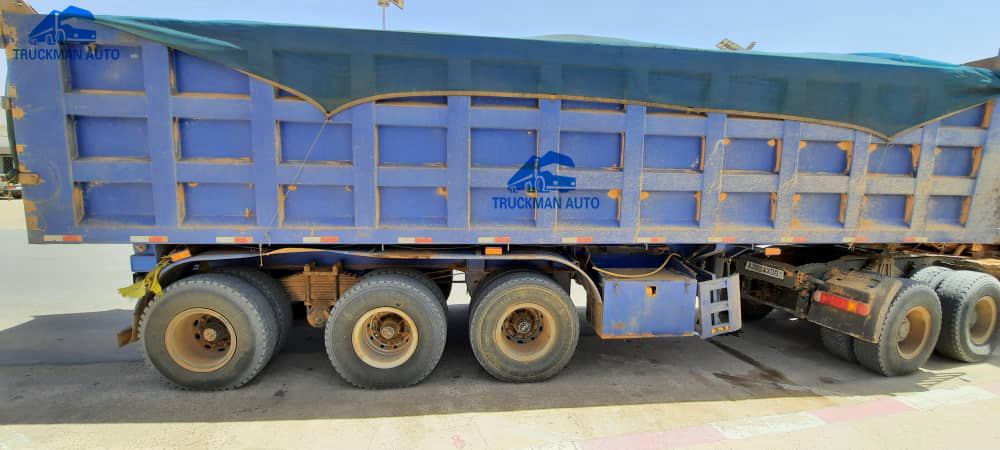

-3. TRUCKMAN AUTO Brand 70 Tons Dump Semi Trailer In Mauritania.

Single Point Suspension Axle 70 Tons Dump Semi Trailer

The local customer use our 70 tons Dump semi trailer for sand transport, due to the transport distance very long, so we also add two pcs tire carrier for Dump semi trailer.
