3 Axle 80 Tons Removable Gooseneck Low Bed Trailer For Excavator Transport

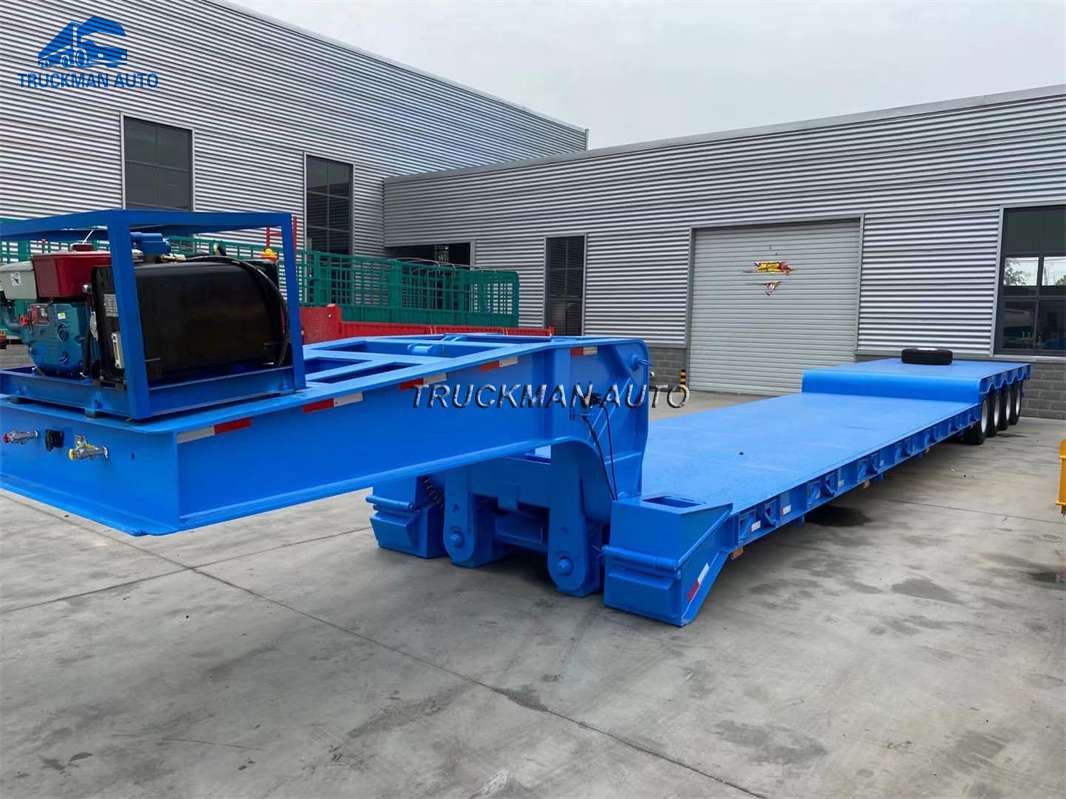

-1. Removable Gooseneck Low Bed Trailer Detail.
The low bed trailer gooseneck can removable, can loading heavy machinery from two side. And engine
is WEICHAI brand, supply the enough power. Also the spare parts can easy get in local.
-. Adopt the 12KW diesel engine, quickly help removable gooseneck.
-. The whole trailer material adopt the high strength steel, confirm the heavy duty transport.
-. Major parts and components of the trailer adopt famous brand of parts, like JOST support leg and
tractor pin, WABCO brake valve, LINGLONG tire etc.
-2. Removable Gooseneck Low Bed Trailer Specification.
| Description | Parameter value |
| Product Name | Removable Gooseneck Low Bed Trailer |
| Application | For haulage heavy machinery |
| Axle | 4 axle, 4x13000 tons, ZY & FUWA brand |
| Suspension | Mechanical model, 8mm thickness |
| Support Leg | 28 tons, JOST or FUWA brand |
| Engine | 12KW diesel engine with hydraulic station |
| Brake System | WABCO brand |
| Fifth Wheel | 3.5 inch, for heavy duty loading |
| Tire | 12.00R20, 12 pcs, LINGLONG brand |
| Rim | 18mm thickness, for heavy loading |
| Loading Tons | 80 tons |
The removable gooseneck low bed trailer specification only for your reference, we will recommend other
model low bed trailer according to your request.

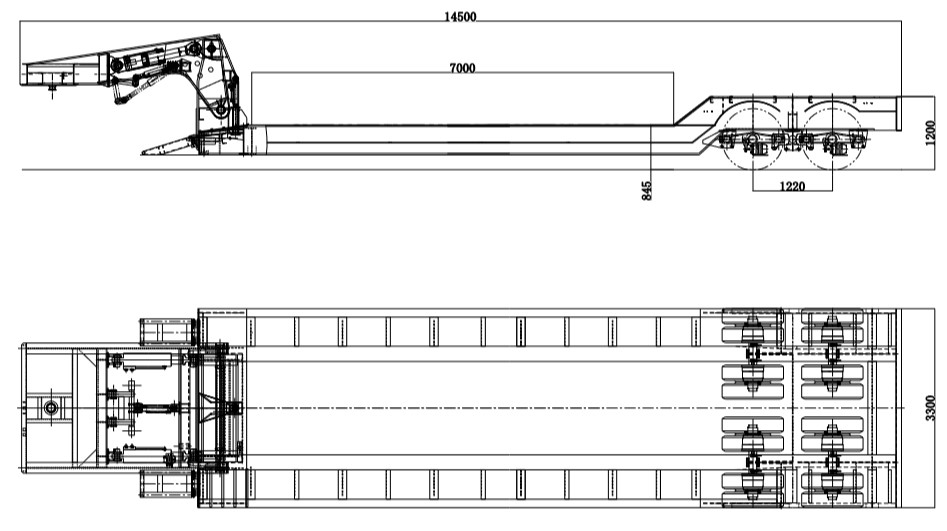

-3. Removable Gooseneck Low Bed Trailer Design Draft.
Here attached our removable gooseneck low bed trailer design draft picture for your reference and review,
we also can produce the low bed trailer according to your request, see picture.

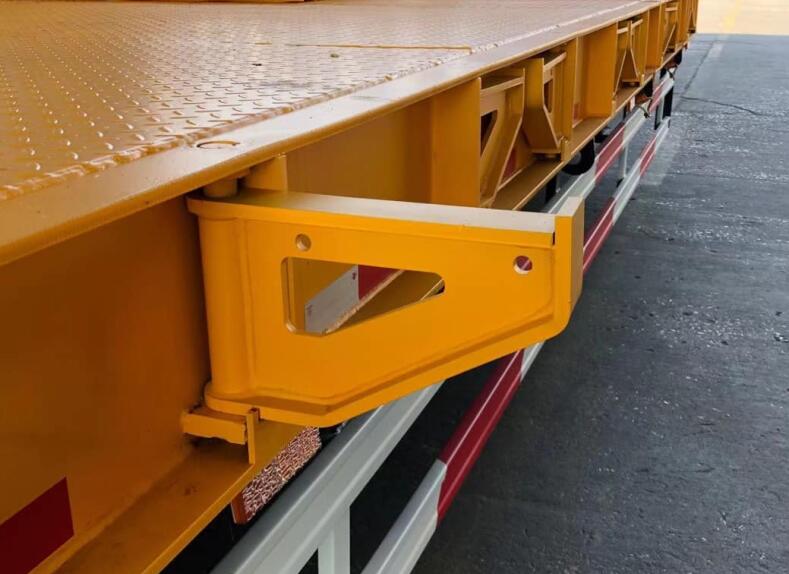

Some customers request if we can let trailer width range from 3000mm to 3500mm ? due to some big
heavy duty machinery width reach to 3450mm. So we add the extra 25mm width support frame each
side of low bed trailer, as follow:
